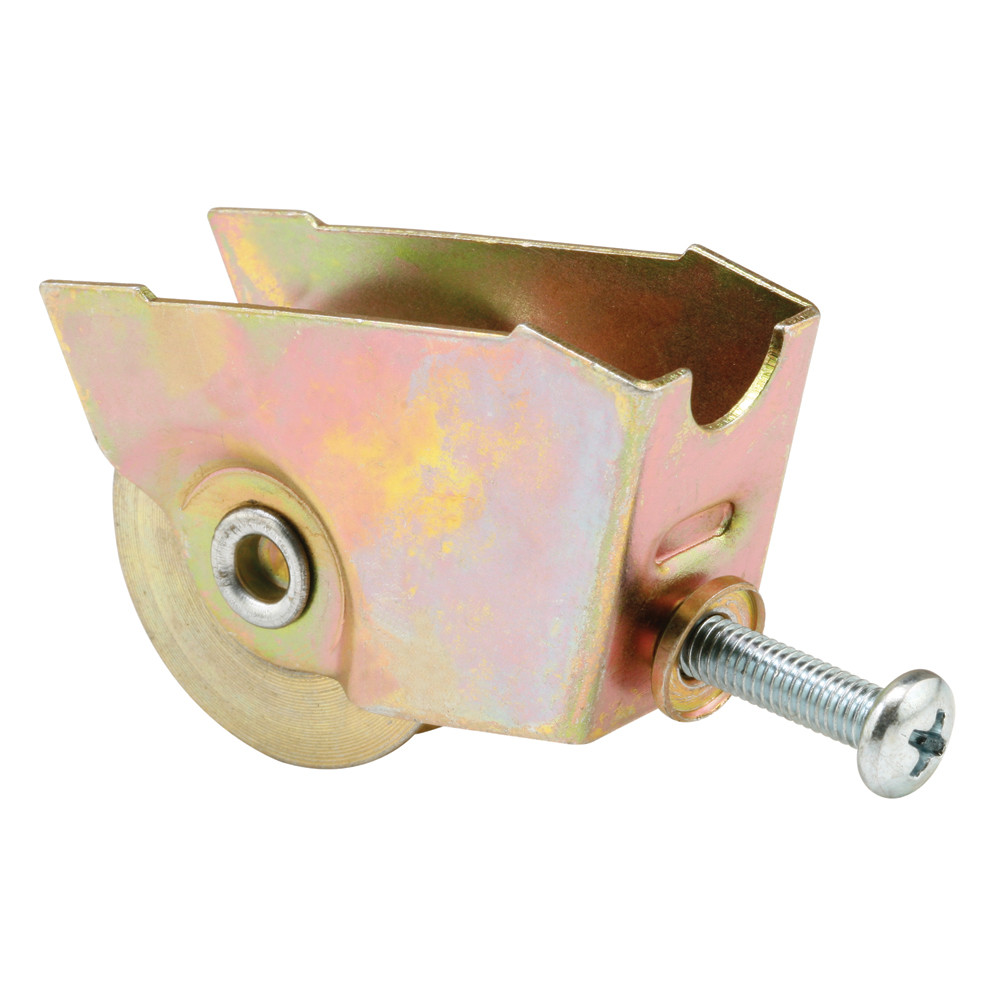

This is a unique housing patio door roller assembly. It is 3/4 inch wide and 2-1/8 inch long with a 1-1/4 inch diameter steel ball bearing roller attached. To install, remove the screw from the back and insert the assembly into the bottom rail end. Replace side stile, insert screw and into assembly. As the screw draws the roller's backside tighter, the design causes the front end to rotate downward and the door to lift to the desired height. Used by Rolleze or Rylock.

[/PRODUCT_DESCRIPTION]

[SPECIFICATIONS]

3/4 inch wide, 1-1/8 inch tall and 2-1/8 inch long
Insert the roller into the bottom rail without the screw. Replace the side stile. As the screw draws the roller's bottom backside tighter, the design causes the far end to rotate downward causing the roller to lift the door to the desired height
Used on metal framed doors
Used by Rolleze Glass and Rylock

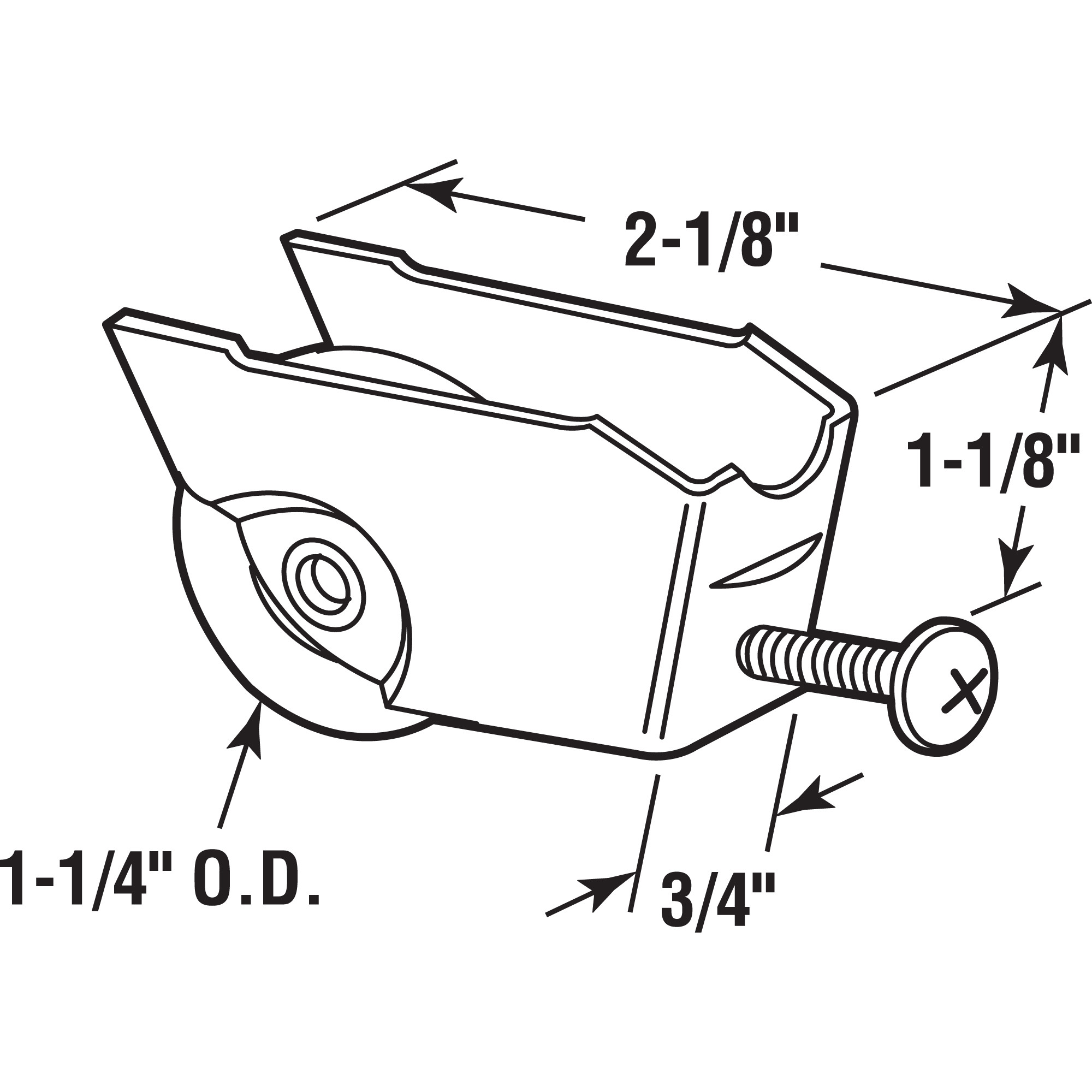

Please refer to the line art drawing and compare with your original item before purchasing

[/SPECIFICATIONS]

[WARRANTY]

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

View Installation Instructions

[/WARRANTY]
