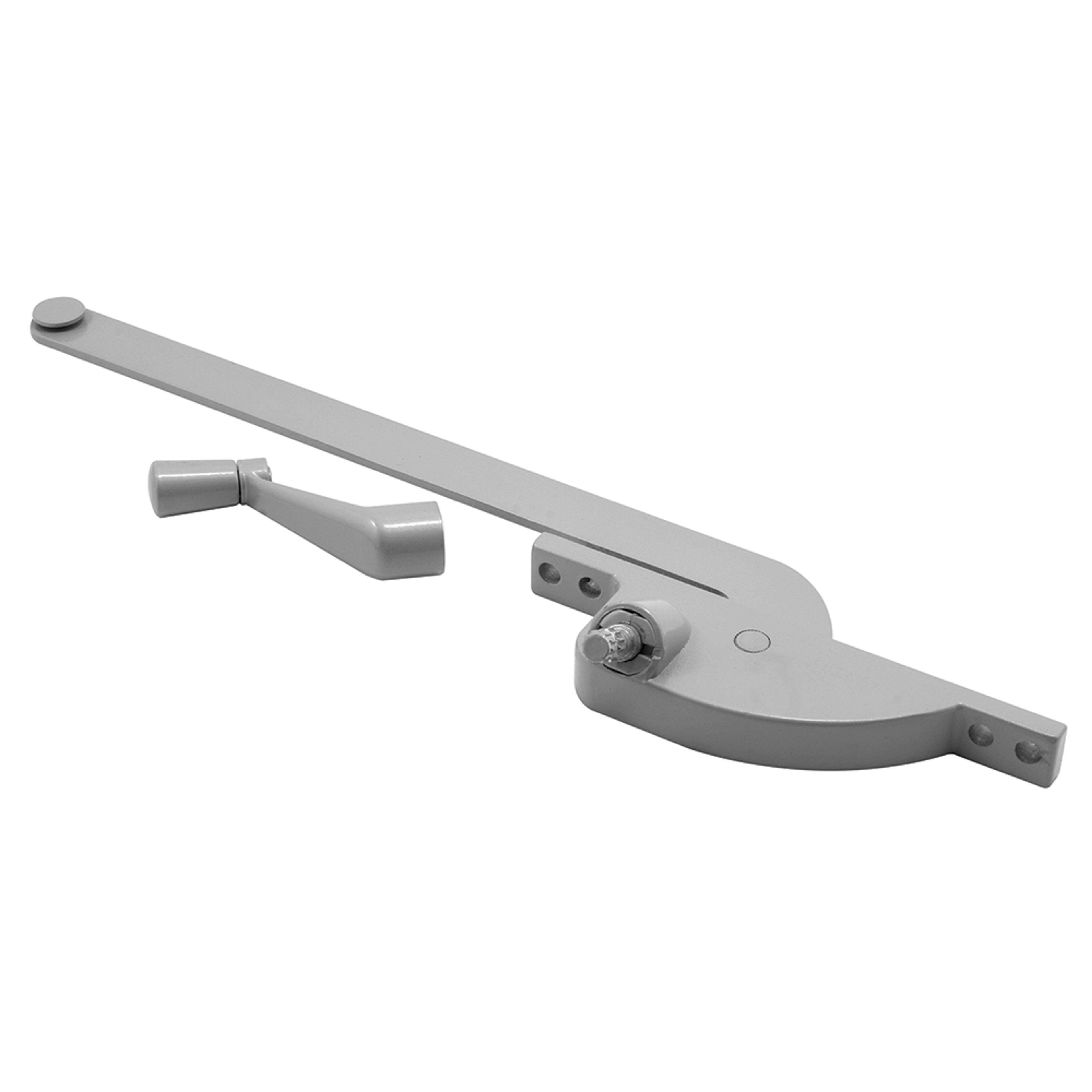

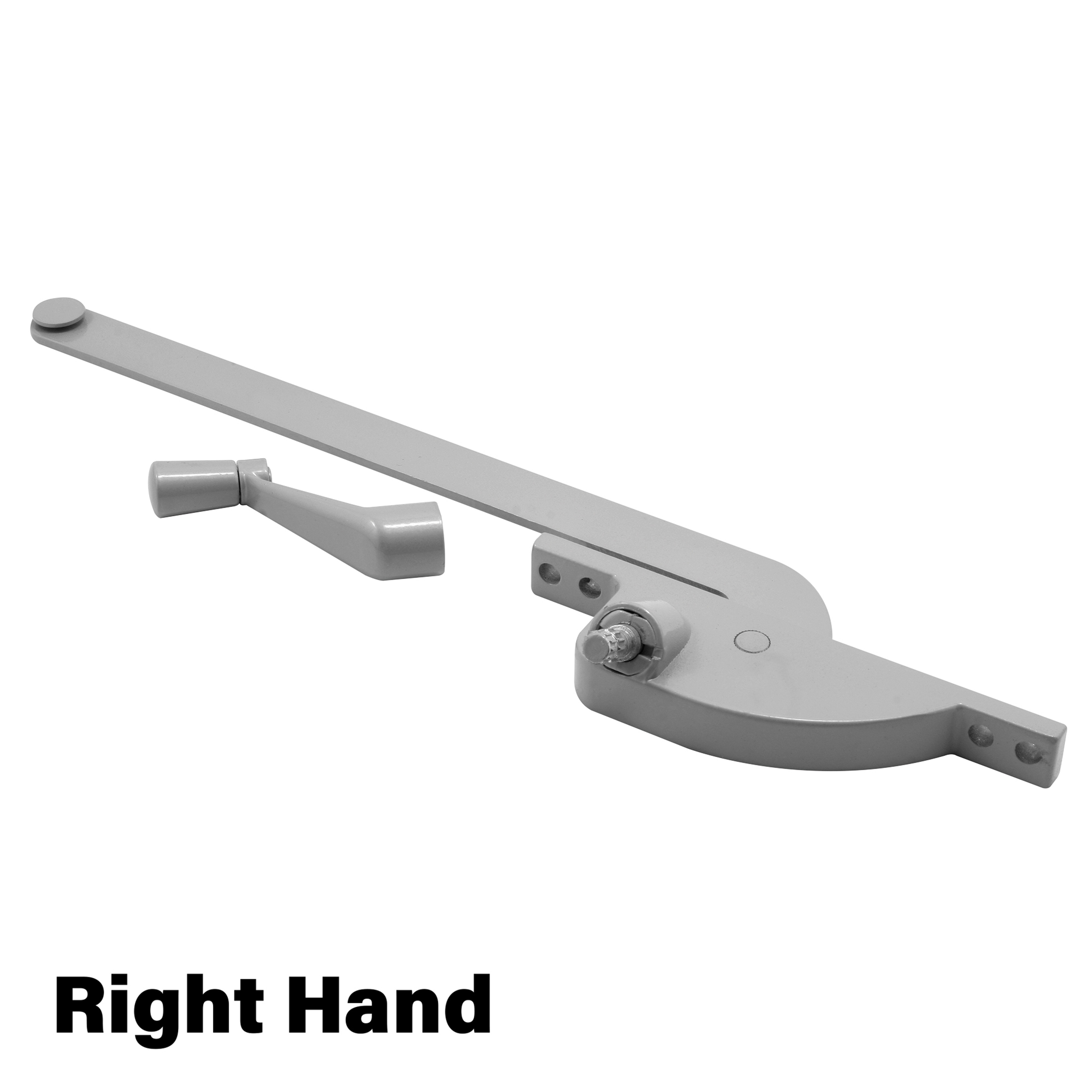

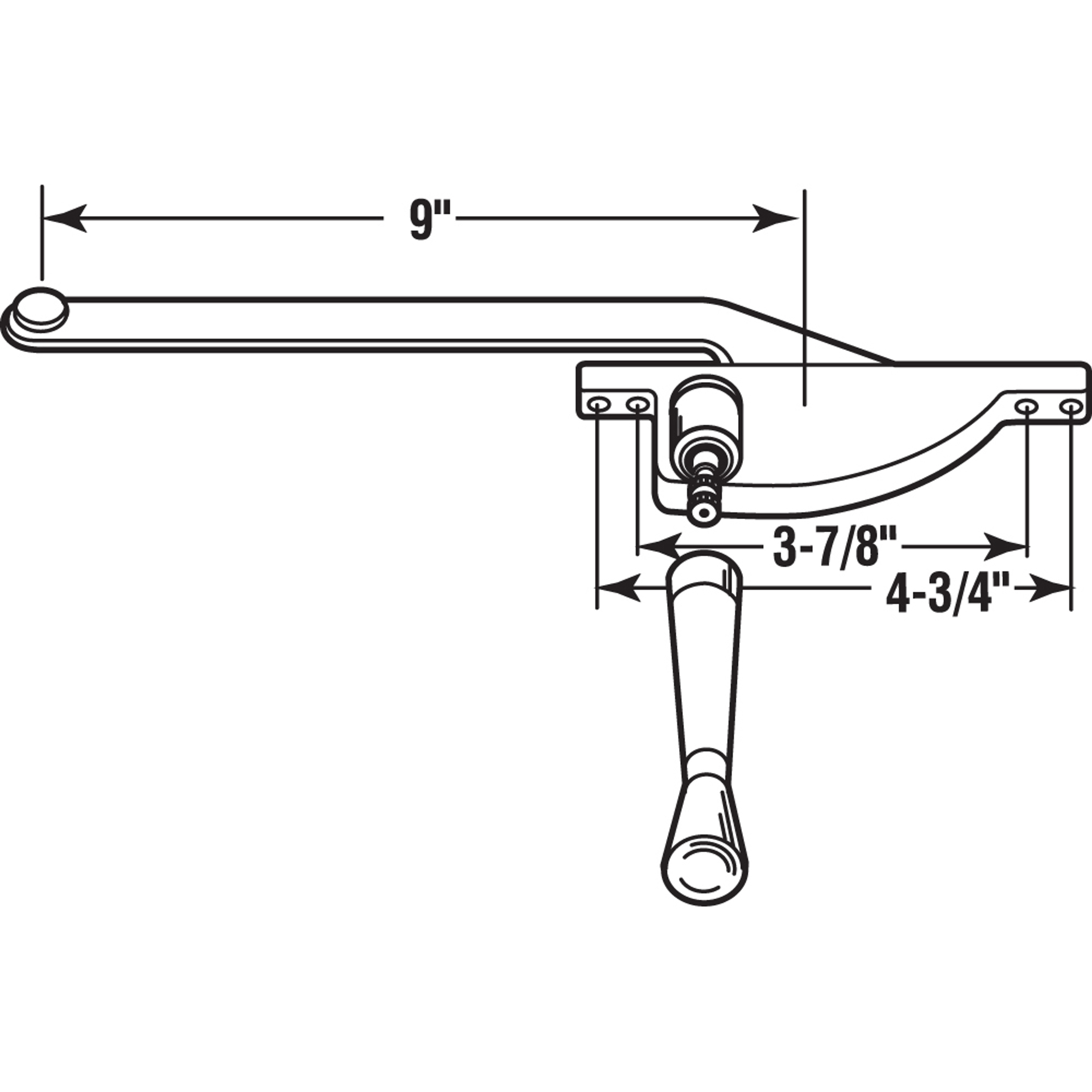

This casement window operator is a right-handed aluminum square body type. It has a 9 inch steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 inch crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 and 4-3/4 inch on center.

[/PRODUCT_DESCRIPTION]

[SPECIFICATIONS]

Heavy duty diecast zinc construction with an aluminum finish
Steel worm drive gear for durability

[/SPECIFICATIONS]

[WARRANTY]

Goods are warranted against manufacturing defects for 1 year. In no case is Prime-Line responsible for user related damage or damage incurred during installation. Warranty is void if products are subjected to abnormal conditions, misapplication or abuse.

View Installation Instructions

[/WARRANTY]

29:T422,[PRODUCT_DESCRIPTION] This casement window operator is a right-handed aluminum square body type. It has a 9 inch steel arm with a round disc on the tip (some older styles had a small wheel instead of a disc). The disc slides in the Prime-Line part H 3529 casement track located on the bottom of the casement window. It is worm gear driven by a 3/8 inch crank spindle. The matching crank handle that fits onto the crank spindle and installation screws are included. Mounting holes available are 3-7/8 and 4-3/4 inch on center. [/PRODUCT_DESCRIPTION] [SPECIFICATIONS] Heavy duty diecast zinc construction with an aluminum finish Steel worm drive gear for durability

9 in. Diecast Construction Aluminum Painted Finish Right Hand Casement Operator with Teardrop Body (Single Pack)

9 in. Diecast Construction Aluminum Painted Finish Right Hand Casement Operator with Teardrop Body (Single Pack)

Product Details

Specifications

Warranties & Manuals
